As a critical component within the entire system, the iFA-TP series HMI supports capacitive or resistive touch screens and HD widescreen displays. It offers support for a variety of communication methods, is equipped with a wide range of peripherals, and can be integrated with face recognition technology, making it easier to deploy applications. In addition, it also accommodates embedded, wall-mounted, desktop, and other installation methods, thereby presenting a cost-effective HMI solution.
| 型号 Model | iFA-CTP10 | iFA-CTP14 | iFA-CTP19 |

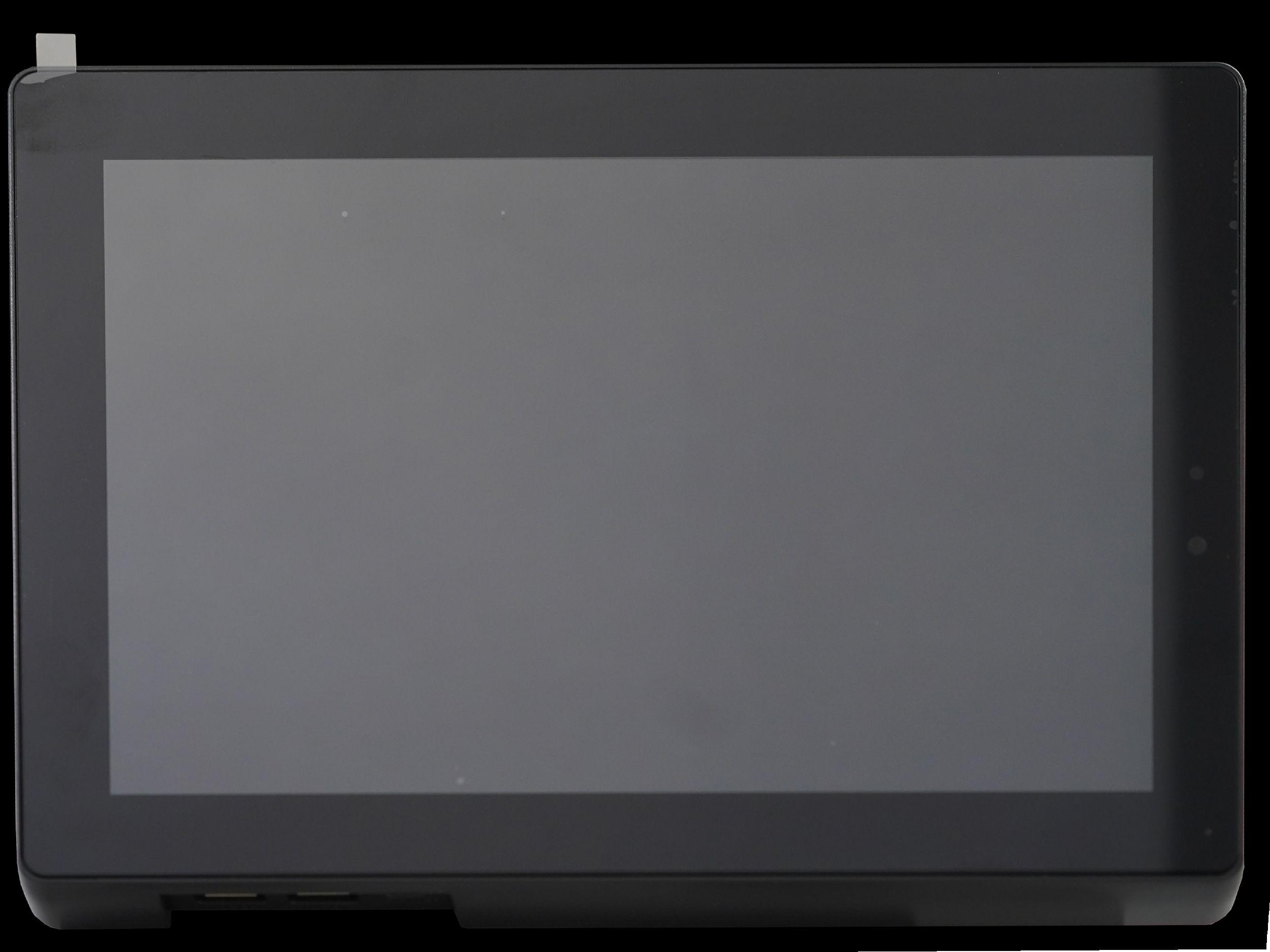

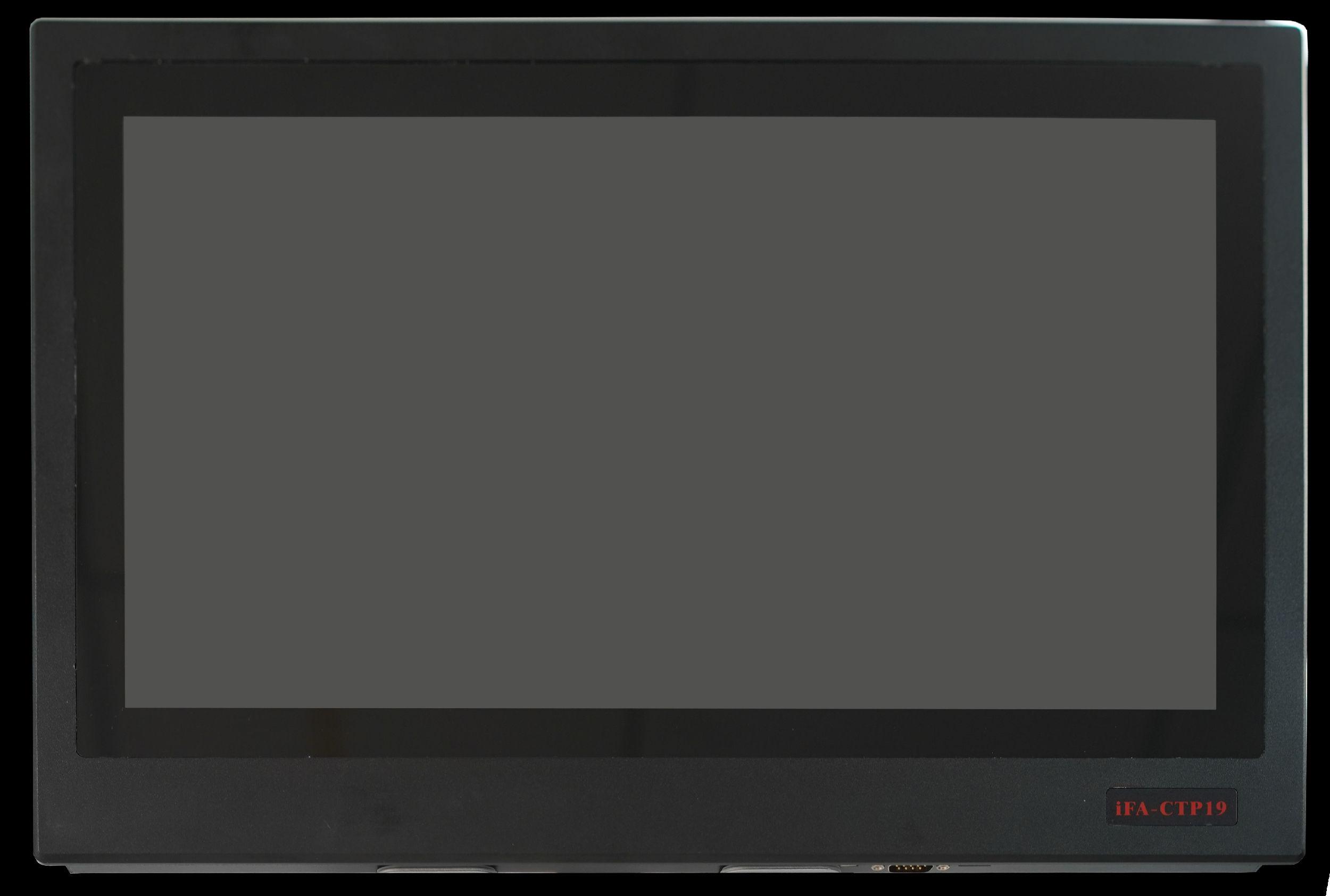

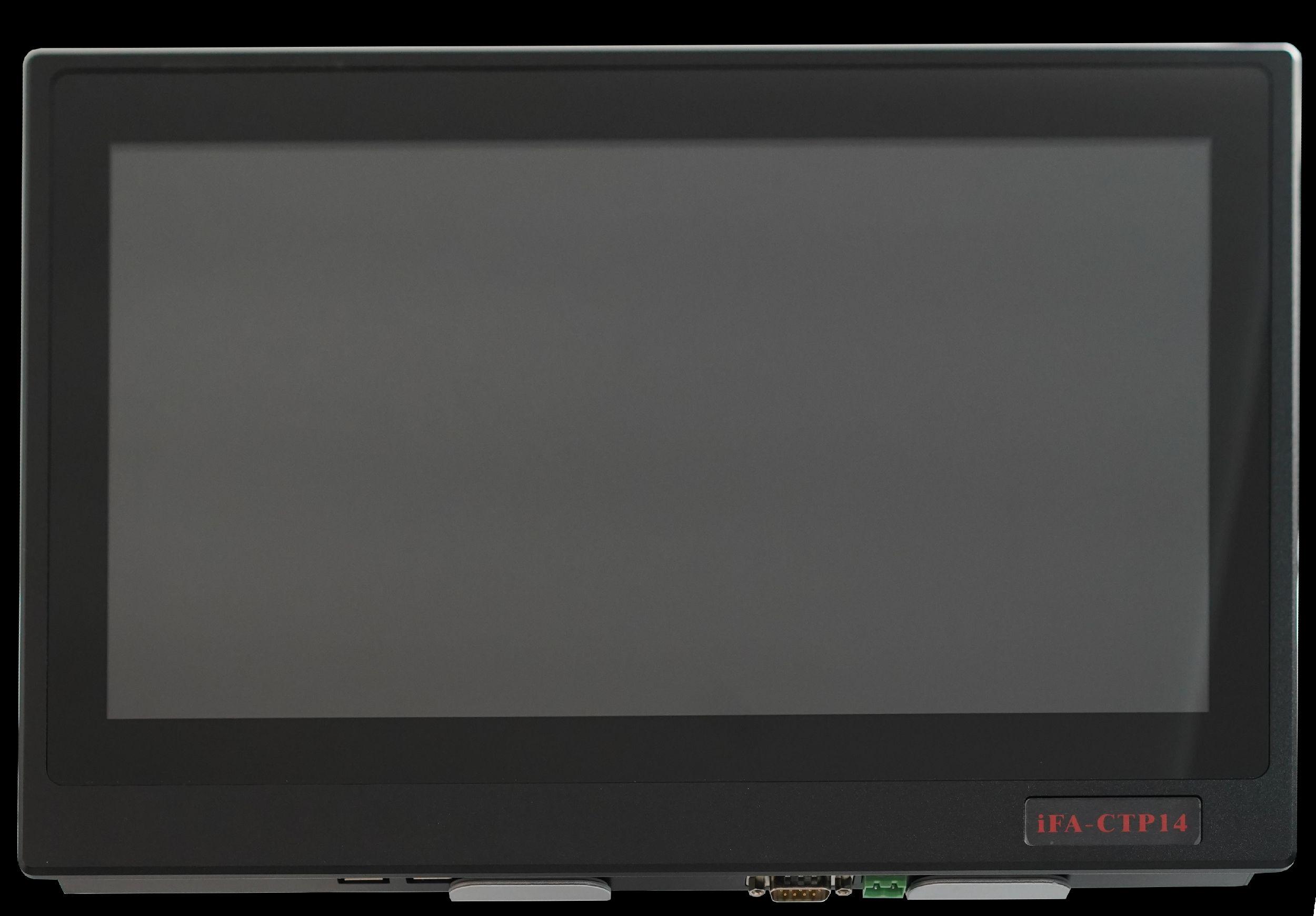

| 产品图片 Product Image |  |  |  |
| 操作系统 Operating System | Linux4.4 & QT | ||
| CPU | 四核A8，运行主频为1GHz Quad-core A8@1GHz | ||
| 存储器 Memory | 1G DDR & 8G EMMC | ||
| 显示屏 Display Screen | 10.1寸LCD 10.1 inch LCD | 14.1寸LCD 14.1 inch LCD | 18.5寸LCD 18.5 inch LCD |
| 分辨率 Resolution | 1280*800 | 1920*1080 | 1920*1080 |
| 触摸屏 Touch Screen | 电容式、电阻式 Capacitive, resistive | ||
| 通讯接口 Communication Interface | 1路RS232 & 2路RS485 1 RS232 & 2 RS485 | ||
| 数据接口 Data Interface | 2路USB2.0，1路micro-usb(仅供调试) 2 USB 2.0 ports, 1 micro-USB port (for debugging only) | ||
| 以太网 Ethernet | RJ45, 100M * 2路 RJ45, 100M * 2 channels | ||
| 电源 Power Supply | DC24V/3A | ||
| 扩展功能 Expansion Function | 500W高清摄像头；存储最高可扩展至4G DDR & 128G EMMC；蓝牙通讯等 500W high-definition camera; storage expandable up to 4G DDR & 128G EMMC; Bluetooth, etc. | ||
| 无线网卡 Wireless Network Card | 802.11 b/g/n | ||
| 工作温度 Operating Temperature | -10℃~60℃，相对湿度10-90%，无凝露 -10℃~60℃, relative humidity 10-90%, no condensation | ||
| 存储温度 Storage Temperature | -20℃~70℃，相对湿度10-90%，无凝露 -20℃~70℃, relative humidity 10-90%, no condensation | ||
| 材质 Material | ABS & 铝合金 ABS & Aluminum Alloy | ||
| 颜色 Color | 磨砂黑、铁灰色 Matte black, iron gray | ||
| 尺寸 Size | 360*250*40(mm^3) | 360*250*33(mm^3) | 480*330*35(mm^3) |
| 安装方式 Installation Method | 卡扣式、嵌入式、壁挂式 Snap-on, embedded, wall-mounted | ||
