As a critical component within the entire system, the iFA-TP series HMI supports capacitive or resistive touch screens and HD widescreen displays. It offers support for a variety of communication methods, is equipped with a wide range of peripherals, and can be integrated with face recognition technology, making it easier to deploy applications. In addition, it also accommodates embedded, wall-mounted, desktop, and other installation methods, thereby presenting a cost-effective HMI solution.
| 型号 Model | iFA-CTP10-I58 | iFA-CTP14-I58 | iFA-CTP19-I58 |

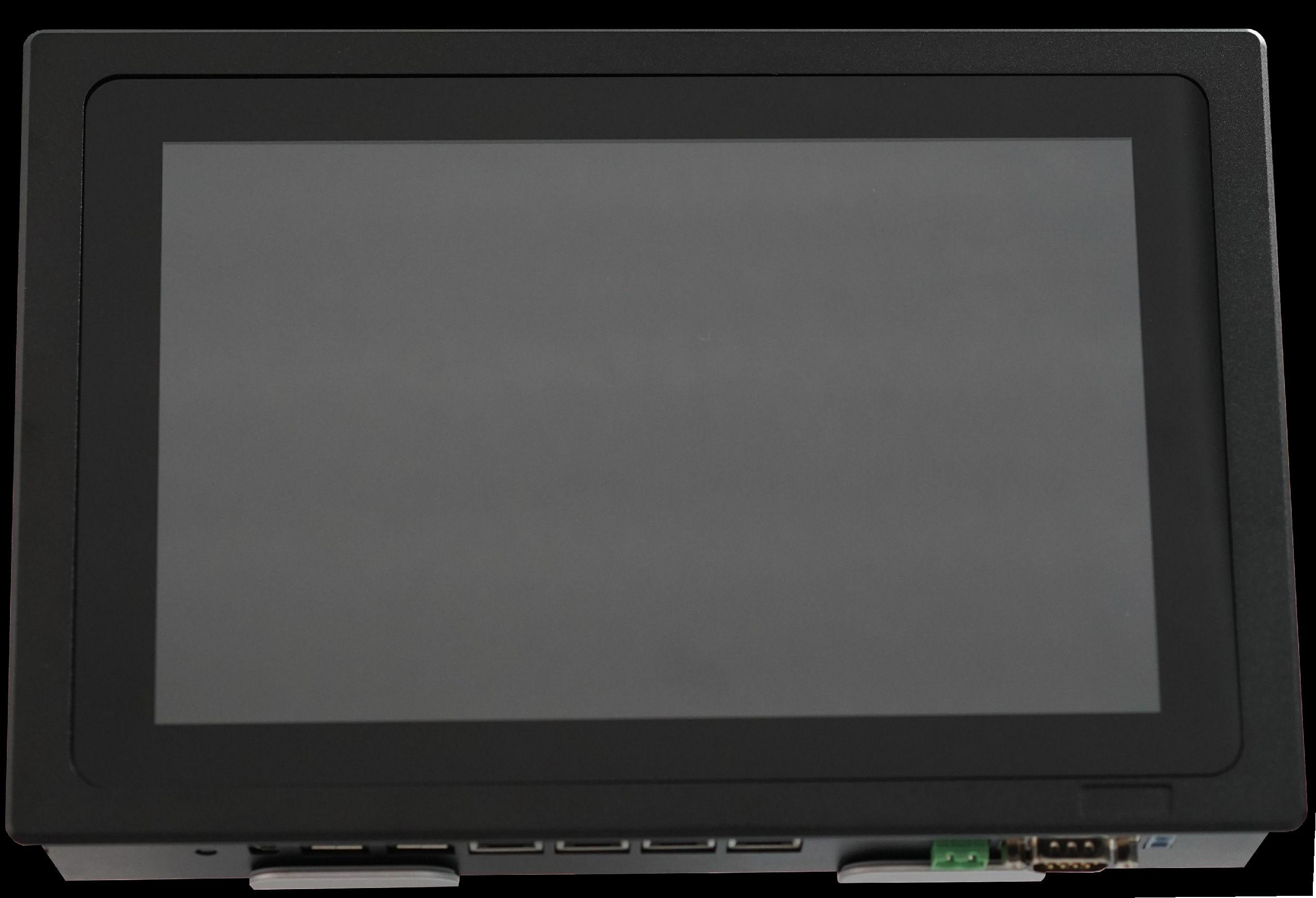

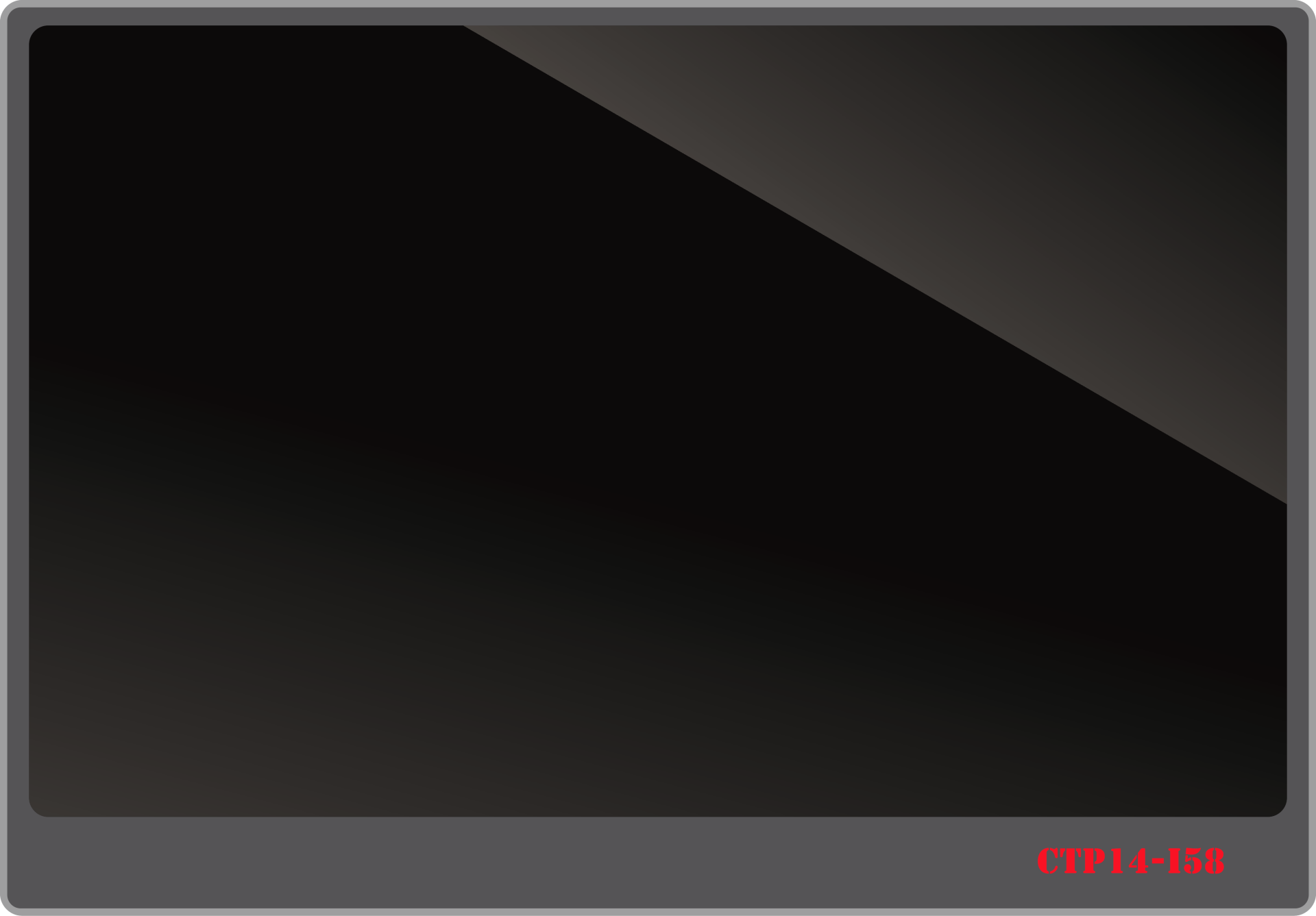

| 产品图片 Product Image |  |  | |
| 操作系统 Operating System | windows 10 | ||
| CPU | 英特尔8代I5处理器 Intel 8th Generation i5 Processor | ||
| 存储器 Memory | 16G DDR & 64G 硬盘（可拓展） 16GB DDR & 64GB Hard Drive (expandable) | ||
| 显示屏 Display Screen | 10.1寸LCD 10.1 inch LCD | 14.1寸LCD 14.1 inch LCD | 18.5寸LCD 18.5 inch LCD |
| 分辨率 Resolution | 1280*800 | 1920*1080 | 1920*1080 |
| 触摸屏 Touch Screen | 电容式，最高支持10点触控 Capacitive, supports up to 10-point touch | ||
| 通讯接口 Communication Interface | 1路RS232 & 2路RS485 1 RS232 & 2 RS485 | ||
| 数据接口 Data Interface | 2路USB3.0 2 USB 3.0 ports | ||
| 以太网 Ethernet | RJ45, 1000M *1路，100M *1路 RJ45,1000M*1，100M*1 | ||
| 电源 Power Supply | DC24V/5A | ||
| 扩展功能 Expansion Function | 无线网卡，蓝牙通讯 Wireless network card, Bluetooth | ||
| 工作温度 Operating Temperature | -10℃~60℃，相对湿度10-90%，无凝露 -10℃~60℃, relative humidity 10-90%, no condensation | ||
| 存储温度 Storage Temperature | -20℃~70℃，相对湿度10-90%，无凝露 -20℃~70℃, relative humidity 10-90%, no condensation | ||
| 材质 Material | ABS & 铝合金 ABS & Aluminum Alloy | ||
| 颜色 Color | 磨砂黑、银白色 Matte black, silver white | ||
| 尺寸 Size | 360*250*40(mm^3) | 360*250*33(mm^3) | 480*330*35(mm^3) |
| 安装方式 Installation Method | 卡扣式、嵌入式、壁挂式 Snap-on, embedded, wall-mounted | ||
