Medicine dispenser
Blood glucose meter test strips are used to measure blood glucose concentration. They work by using glucose oxidase on the test strip to react with glucose in the blood to produce a color that indicates blood glucose levels. These enzymes are usually added to the test paper by printing or dispensing. Compared with other production methods, dispensing test strips use less biological enzymes to ensure more precise position distribution, thereby improving performance stability and accuracy. The accuracy of blood glucose test paper is closely related to the precision of biological enzyme dispensing. The dispensing system developed by our company has high precision, high consistency and strong process control capabilities, which can achieve precise dispensing, reaching nano-liter (nL) level accuracy, and can be widely used in medical and life sciences and other fields to meet customers' diverse dispensing needs.
方案组成


System characteristics:

Drop volume: 2.0 nL to 2.0 μL

Droplet size: 0.05 mm ~ 2mm

Processing speed: up to 200mm / s, support 1 ~ 6 nozzle synchronous processing, support dual station

Position accuracy: ± 0.02 mm, supports high precision linear module

Droplet volume accuracy: CV less than 3%

Dispensing mode: direct dispensing or suction and dispensing

Processing path generation mode: support free programming, can store 1000 processing file recipes

Operation: An easy-to-use touch screen human machine interface

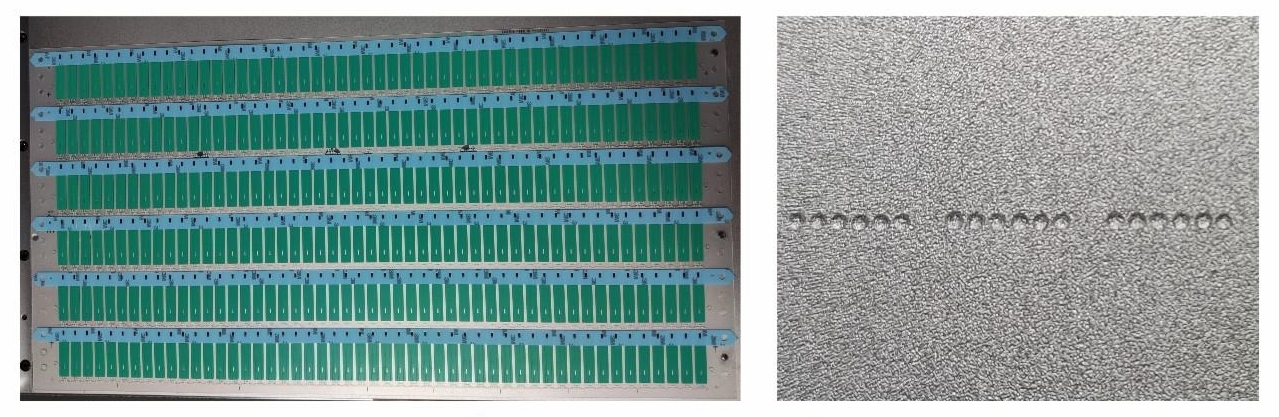

Effect of dispensing:
